250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe Making Machine

Name: 250mm250mm 500mm500mm High Speed Automatic API Oil Steel Pipe Making Machine
Brand: ZTZG
Price: 1 USD

Wholesale 250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe Making Machine from china suppliers

Brand Name : ZTZG

Model Number : ERW660

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/year

Delivery Time : 90 days

Packaging Details : All mechanical equipment is nude packing and electrical parts are packed in wooden cases

Product Name : 250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe Making Machine

Pipe Material : Carbon Steel Coil

Production capacity : 180,000ton/year

Thickness : 6.0mm-20.0mm

Pipe shape : Square, Rectangular

Mill installed capacity : 1200 kw

Square & rectangle tube : 250mm×250mm -500mm×500mm

Production Speed : 20 m/min

Technology : ZTF,directly square-to-square(DSS) technique,Round-to-square

Products : API pipes, tower footing tubes, automobile beam steel pipe

Line Area : 350m(length) ×35m (width)

After-sales service provided : Engineers available to service machinery overseas

Contact Now

250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe Making Machine

ERW660 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 325mm-660mm in OD and 6mm-20mm in wall thickness, as well as corresponding square and rectangular pipe.

250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe Making Machine

Advantage:

When producing round pipe, it can utilize ZTF forming technique

When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

Products:

Architectural structure pipes, API pipes, tower footing tubes, automobile beam steel pipe and other products.

250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe Making Machine

Basic Technical Information of Welded Pipe Production Line
Product&yield	Round Pipe	325mm-660mm Thickness: 6.0mm-20.0mm
	Square & rectangle tube	250mm×250mm -500mm×500mm Thickness:6.0mm-20.0mm
	Length	6m-12m Length Tolerance: ±3mm
	Production Speed	20 m/min
	Production capacity	180,000ton/year
Consumption	Mill installed capacity	1200 kw
	Line Area	350m(length) ×35m (width)
	worker	6-8 workers
Raw Material	Carbon Steel coil	Carbon steel coil Q235B(ASTM GR·D,σs 230)

Technical flow

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe Making Machine

Forming process:

ZTF forming process:Save alt least 60% roller cost with electric control adjustment

General round-to-square process:Stable forming process

Round-to-Square with Turks head:Good pipe quality

Process of directly square-to-square(DSS):One set of roller can produce all tubes with electric control and automatic adjustment

We can also design square tube machine depends on customer’s requirement.

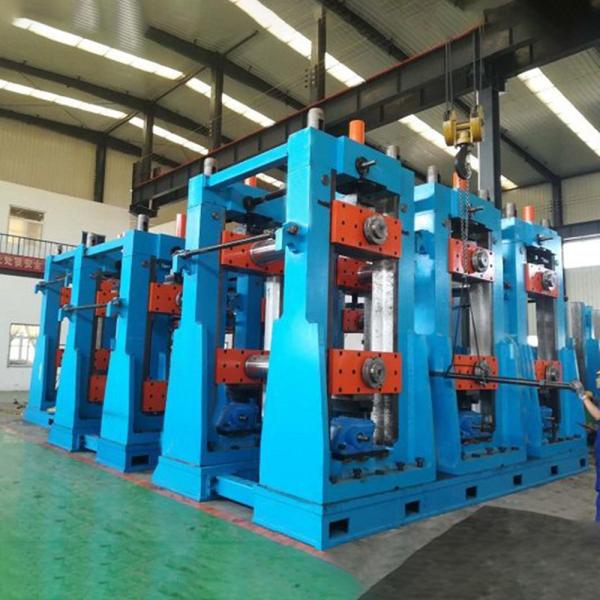

250mm×250mm -500mm×500mm High Speed Automatic API Oil Steel Pipe Making Machine Images
